Engine Block Honing

High Volume Production Honing Systems are fully automated and require very little operator intervention. Learn More

Helical Slide Honing of Diesel Block

Cylinder bore finishing is extremely important in the engine build process. Nagel helical slide honing results in reduced friction and lower oil consumption.  Learn More

Pinion Gear Honing

Nagel HS6 pinion gear honing machines in conjunction with Nagel SPV clamp bore finishing machines impart imparts 0.003mm cylindricity, mirror finishes and submicron bore to face perpendicularity. Learn More

Tape Superfinishing

Nagel TF4 tape finishers are used to primarily finish journals, faces and tapered surfaces. New band shoe technology automatically conforms to different journal diameters Learn More

Hydraulic Valve Body Honing

ECO Series Honing Machines are specifically configured for Hydraulic valve body, produces 0.002 mm bore straightness, 0.001 mm roundness  and mirror finishes Learn More

Cylinder Liner Honing

Nagel bladder clamping fixtures clamping the liner 360 degree from top to bottom, ensure geometric integrity of thin walled liners Learn More

Connecting Rod Honing

Nagel single pass PVT diamond sizing systems  equipped with pre dressed diamond tools, yield first part good part
Learn More

Cup Wheel Superfinishing

Nagel SPV / SPH Cup wheel Face Finishers also called as clamp bore grinders utilize free-cutting cup wheels which conform to the contours of the part. These machine types are capable of generating extremely flat, concave and convex surfaces
Learn More

Centerless Stone Superfinishing

Nagel SCD centerless through feed and SCE plunge feed superfinishers produces mirroe finishes and geometry correction on cylindrical round parts such as bearings, shock absorber shafts, piston pin, track pin, etc.
Learn More

Latest News & Events:

Visit us at Gear Expo 2017, Booth # 531, October 24 – 26th , Columbus, OH

More Info @ GearExpo.com

Visit us at IMTS 2018, Booth #N-7072, Sept. 10 - 15 in Chicago, IL

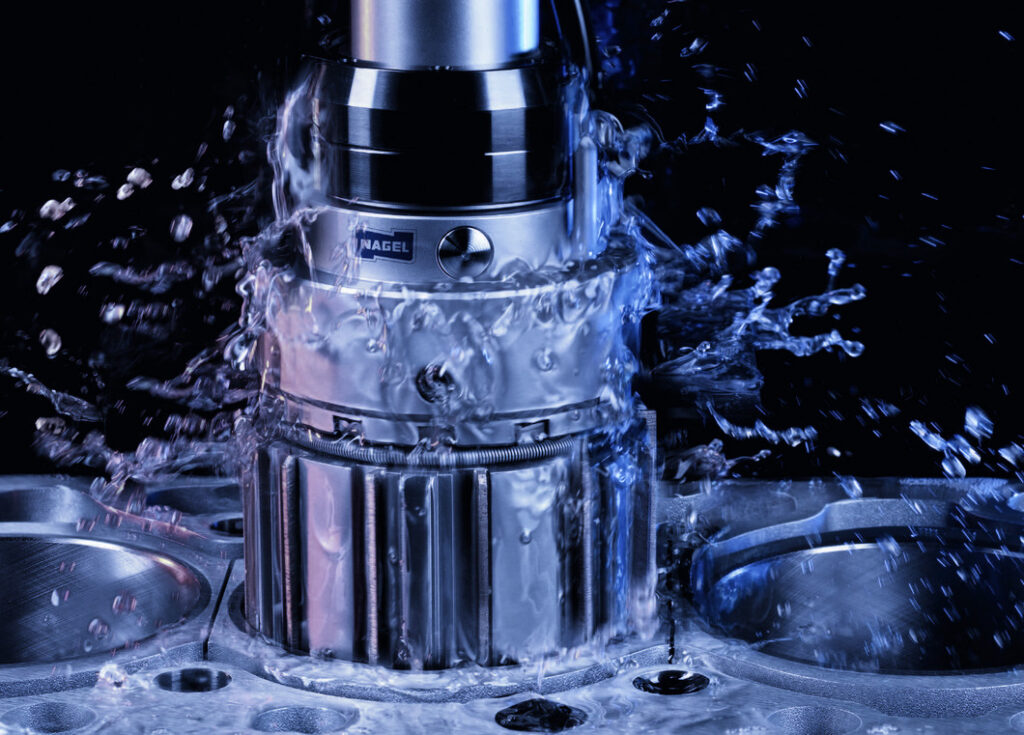

High Volume Honing Machine

High Volume Honing Machine

Nagel builds both conventional stroke honing machines as well as single pass “precidor” honing systems. Proper honing technology is selected based on the part. Every machine is custom designed specifically for the application by utilizing proven subsystems.

Learn More
Low Volume Honing Machine

Low Volume Honing Machine

Low/Med Volume ECO Series Standard Honing Machines are designed for both manual tending and full automation. These machines retain the coveted features of the high volume machines but engineered in such a way that a number of those operations now happen in a single station.

Learn More
Superfinishing Machine

Superfinishing Machine

Nagel builds both tape and stone finishing systems, application drives the use of right finishing technology. SCD, SCE and TF superfinishers are primarily for finishing outer diameters of journals. SPH and SPV are cup wheel superfinishers for finishing flat, convex and concave surfaces.

Learn More

Nagel Precision is recognized as the industry's gold standard in Honing & Superfinishing.

We are located in a modern ISO 9001 and ISO 14001 certified 140,000 sq. ft. manufacturing facility in Ann Arbor, Michigan.
